Tube-Skin Weld-Pad Thermocouples
Tube-skin and weld-pad thermocouples for furnace tubing, heater surfaces, and process equipment skin temperature monitoring.
Product Overview
Tube-Skin Weld-Pad Thermocouples
Tube-skin and weld-pad thermocouples for furnace tubing, heater surfaces, and process equipment skin temperature monitoring.
Tube-Skin Thermocouple Attachment Styles
Tube-skin assemblies are selected by attachment geometry, tube contact, lead protection, and heater environment so the sensor survives elevated-temperature surface service.
Tubing Attachment Style
Tube-contact format for fired heaters and process coils where direct skin measurement is required.

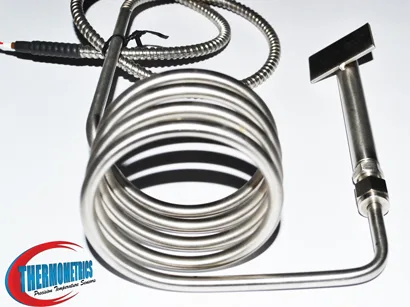

Protected Lead Exit Style
Weld-pad build with armored lead protection for higher-abuse routing and service-friendly field handling.
Tube-Skin Specification Drivers
Why Tube-Skin Temperature Matters
In fired heaters and reformer furnaces, tube metal temperature is the primary indicator of tube life. Exceeding the metallurgical limit of the tube alloy — even briefly — causes permanent creep damage. Tube-skin thermocouples provide the direct metal temperature measurement that fluid-immersion sensors cannot, enabling operators to manage heat flux and extend tube service life.
Dual-Element Option
Installation Note
Thermometrics can supply tube-skin weld-pad assemblies with the pad pre-tack-welded for customer final-weld, or with pre-welded installation completed in our facility on customer-supplied tube coupons. AWS D17.1 weld procedure qualification documentation is available on request.
Need this product configured to your application?
Share the process conditions, geometry, connection details, and documentation requirements. We can help scope the right assembly.
