Multi-Point Thermocouple Assemblies — Single-Nozzle, Multiple Depths
Multi-point thermocouple assemblies for profiling reactors, vessels, towers, and other multi-zone process environments.
Product Overview
Multi-Point Thermocouple Assemblies — Single-Nozzle, Multiple Depths
Multi-point thermocouple assemblies for profiling reactors, vessels, towers, and other multi-zone process environments.
Multi-Point Thermocouple Profile Design
Multipoint thermocouples bundle several measurement depths through one nozzle or process connection for reactors, vessels, towers, and process-profile monitoring.

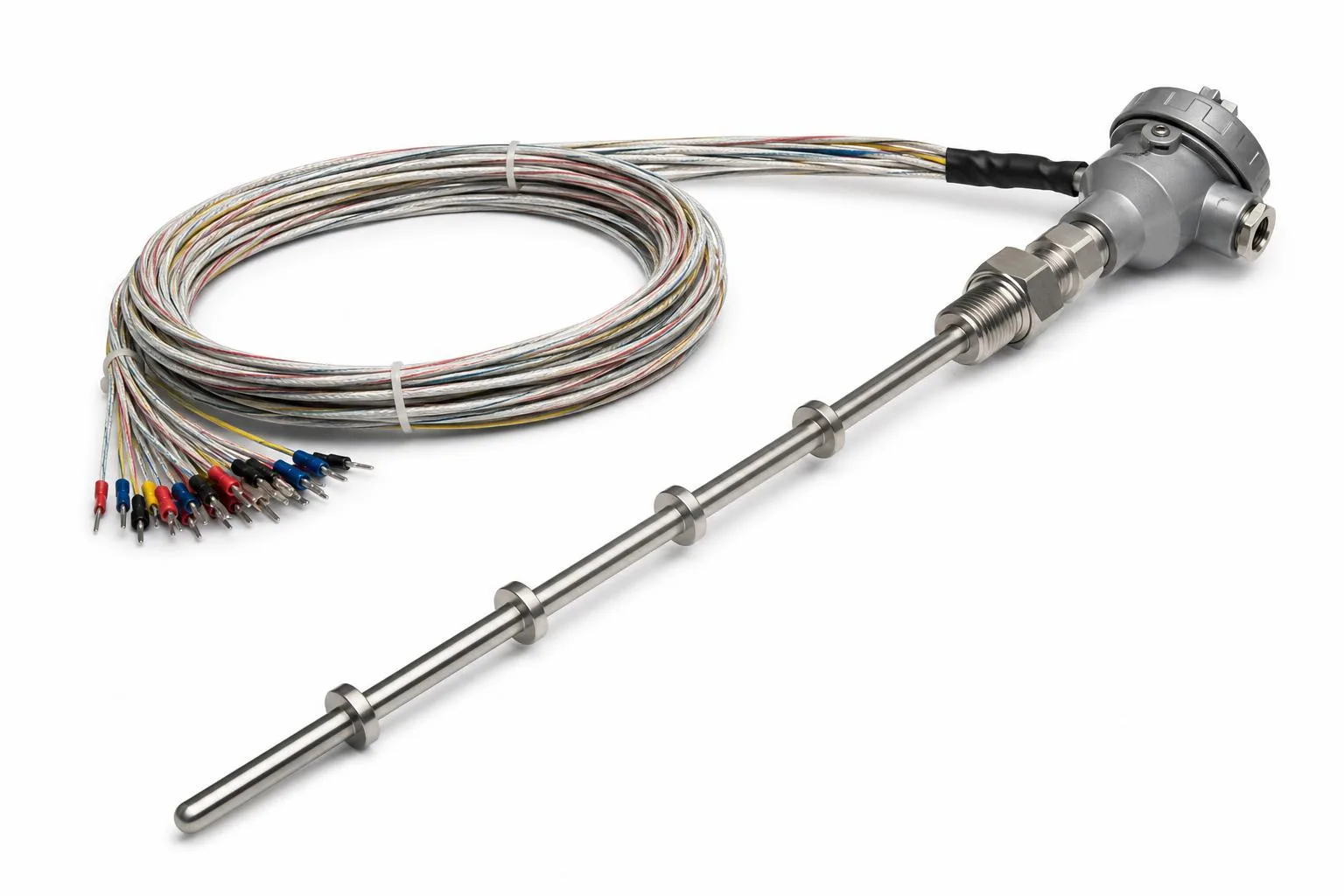

Single-Nozzle Multi-Point Build
Multi-point assembly format for profiling vessels, reactors, towers, and other process environments where several junction depths are needed from one installation point.
Multi-Point Measurement Tradeoffs
Common Applications
Catalyst Bed Reactors
Axial temperature profiling through the catalyst bed.
Crude Oil Storage Tanks
Stratification monitoring across multiple depths.
Industrial Dryers & Kilns
Zone mapping for distributed heat coverage.
Autoclaves & Retorts
Load temperature verification during processing cycles.
Grain & Silo Storage
Hotspot detection before product damage spreads.
Vacuum Furnaces
Work-zone uniformity checks across the chamber.
Reactor and Vessel Profiling Notes
Common Applications
Ordering a Multi-Point Assembly
To quote a multi-point assembly, provide: total insertion length, number of junctions and their depths from the process connection, TC type, junction style, sheath material, process connection type, and termination style. Thermometrics will confirm the sheath OD and conductor bundle required to accommodate the number of junctions specified.
Need this product configured to your application?
Share the process conditions, geometry, connection details, and documentation requirements. We can help scope the right assembly.
