Miniature Thermocouple Sensors — Needle Probe · Fine-Wire · Small OD MIMS
Miniature thermocouple sensors for tight spaces, fine-wire applications, and small-OD probe requirements.
Product Overview
Miniature Thermocouple Sensors — Needle Probe · Fine-Wire · Small OD MIMS
Miniature thermocouple sensors for tight spaces, fine-wire applications, and small-OD probe requirements.
Miniature Thermocouple Package Fit
Miniature thermocouples are specified around probe diameter, access constraints, response time, and junction protection for small fixtures, tight passages, and low-mass measurement points.

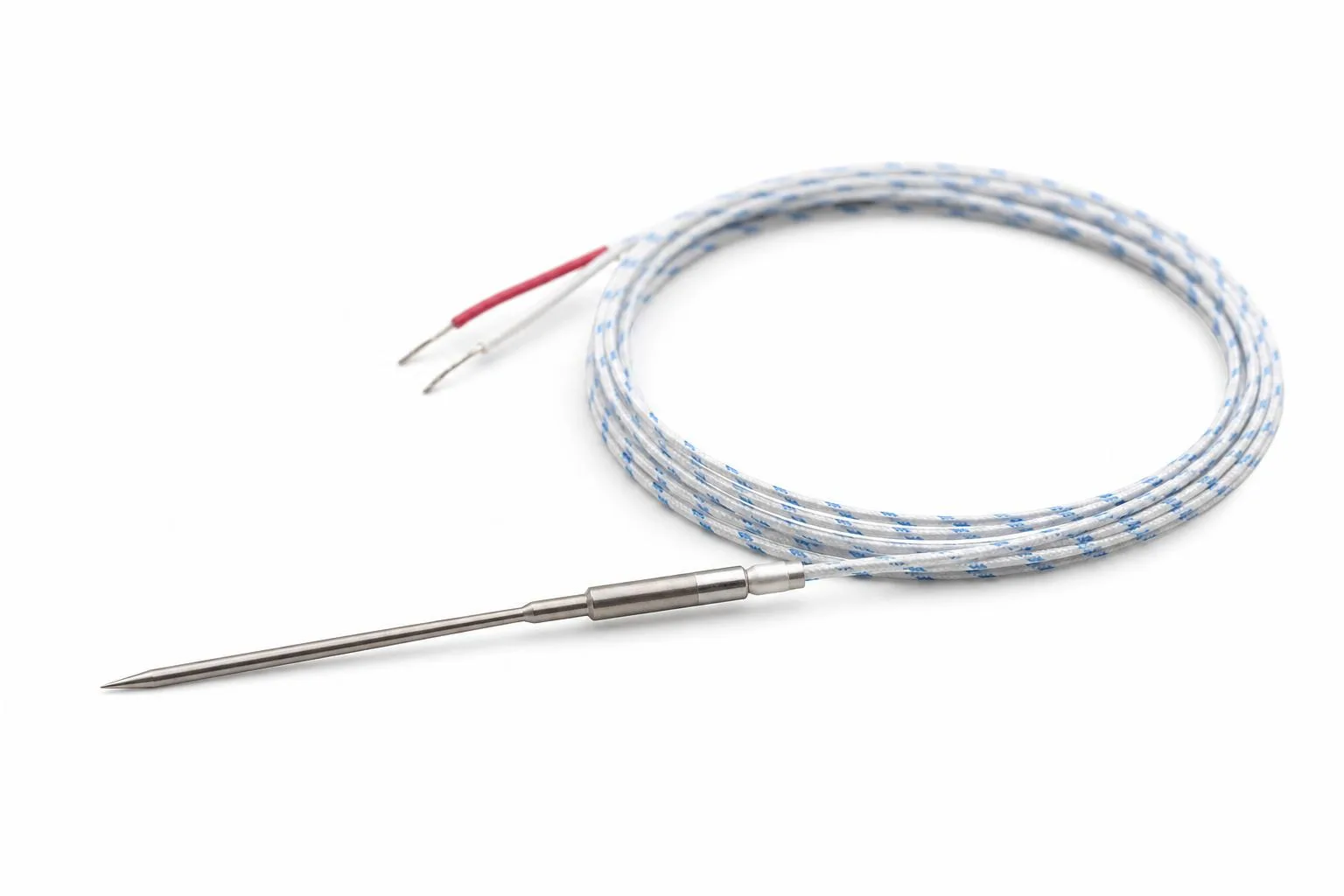

Needle / Pointed Probe Style
Use this compact thermocouple geometry for tight-clearance measurement, thin materials, and fast localized sensing.
Miniature Sensor Configurations
Fine-Wire Bare Thermocouple
Bare thermocouple wire, typically 36–44 AWG, uses a twisted or welded junction with no sheath for the smallest possible thermal mass. It is used for gas temperature measurement in small passages, biological tissue in animal studies, and point-contact surface measurement where sheath OD must be minimized to avoid disturbing the measured object.
Hypodermic-Tube MIMS Probe
An MgO-insulated thermocouple in a hypodermic-gauge stainless steel sheath — 0.020" (0.5 mm) to 0.062" (1.6 mm) OD — can be bent to complex curves without cracking the insulation. It is used for injection mold hot-runner mapping, circuit board temperature profiling, and tight-clearance engine component measurement.
Needle-Tip MIMS Thermocouple
Small-OD needle-tip thermocouple construction for fast point measurement where the sensor must reach into narrow passages, thin materials, or compact fixtures. Typically built in Type K or Type T with grounded or ungrounded junction selection based on response time and electrical noise requirements.
Need this product configured to your application?
Share the process conditions, geometry, connection details, and documentation requirements. We can help scope the right assembly.
