Protection Tube Thermocouples for High-Temperature Service

Protection Tube Assemblies for Furnace and Abrasive Service

Protection tube assemblies start with the outer protective member, then the replaceable inner element, so maintenance teams can service the sensing element without redesigning the furnace or process interface.

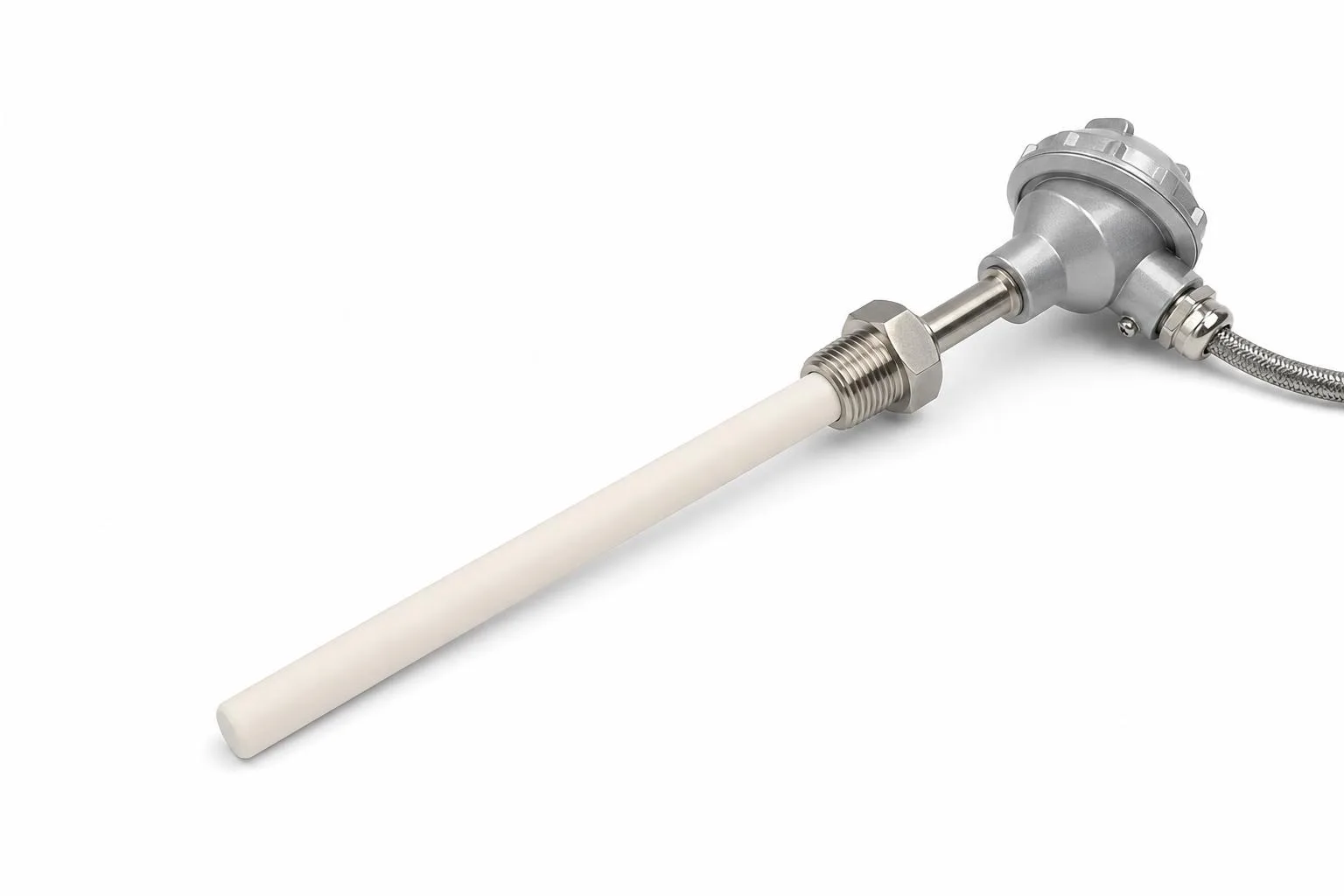

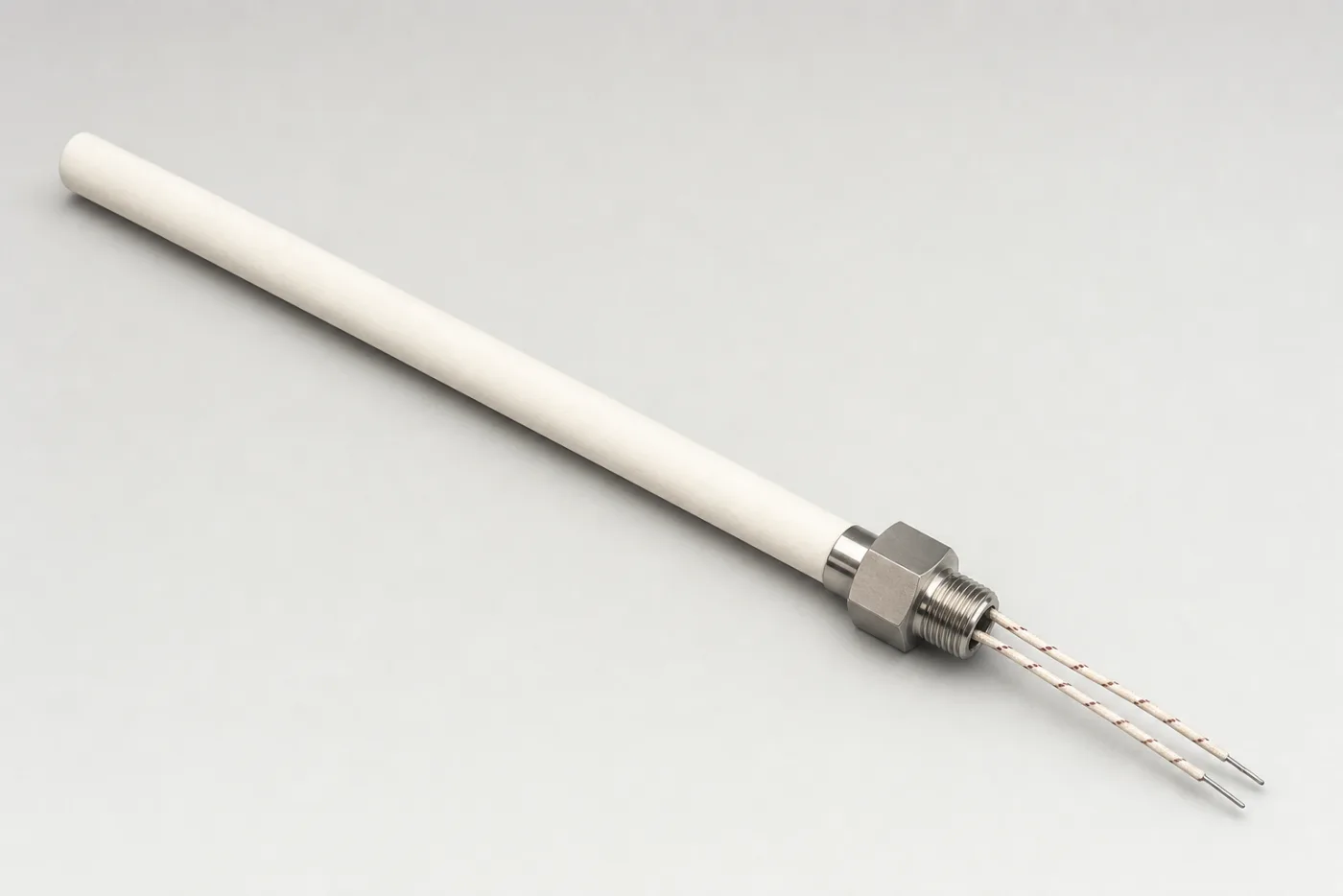

Ceramic Protection Tube Options

Ceramic protection tube assemblies are used when the thermocouple needs an outer barrier against high heat, abrasion, or process exposure. The tube material, diameter, mounting style, and inner element construction should be selected around the furnace or process environment.

Replaceable Element Design

• Protection tube service life: months to years, depending on the application.
• Inner element service life: weeks to months, depending on calibration requirements.
• Element replacement: typically 5–10 minutes with no special tools.
• Tube-only replacement: available when the protection tube degrades.

AMS 2750 Furnace Certification

Protection tube assemblies are used as control, load, survey, and monitoring thermocouples in heat treating furnaces certified per AMS 2750 and CQI-9. NIST-traceable calibration certificates are available for noble-metal assemblies, and lot-certified wire documentation is available for base-metal assemblies.
